Magazine Inspection Form
1
Magazine Number (0-9999)
2

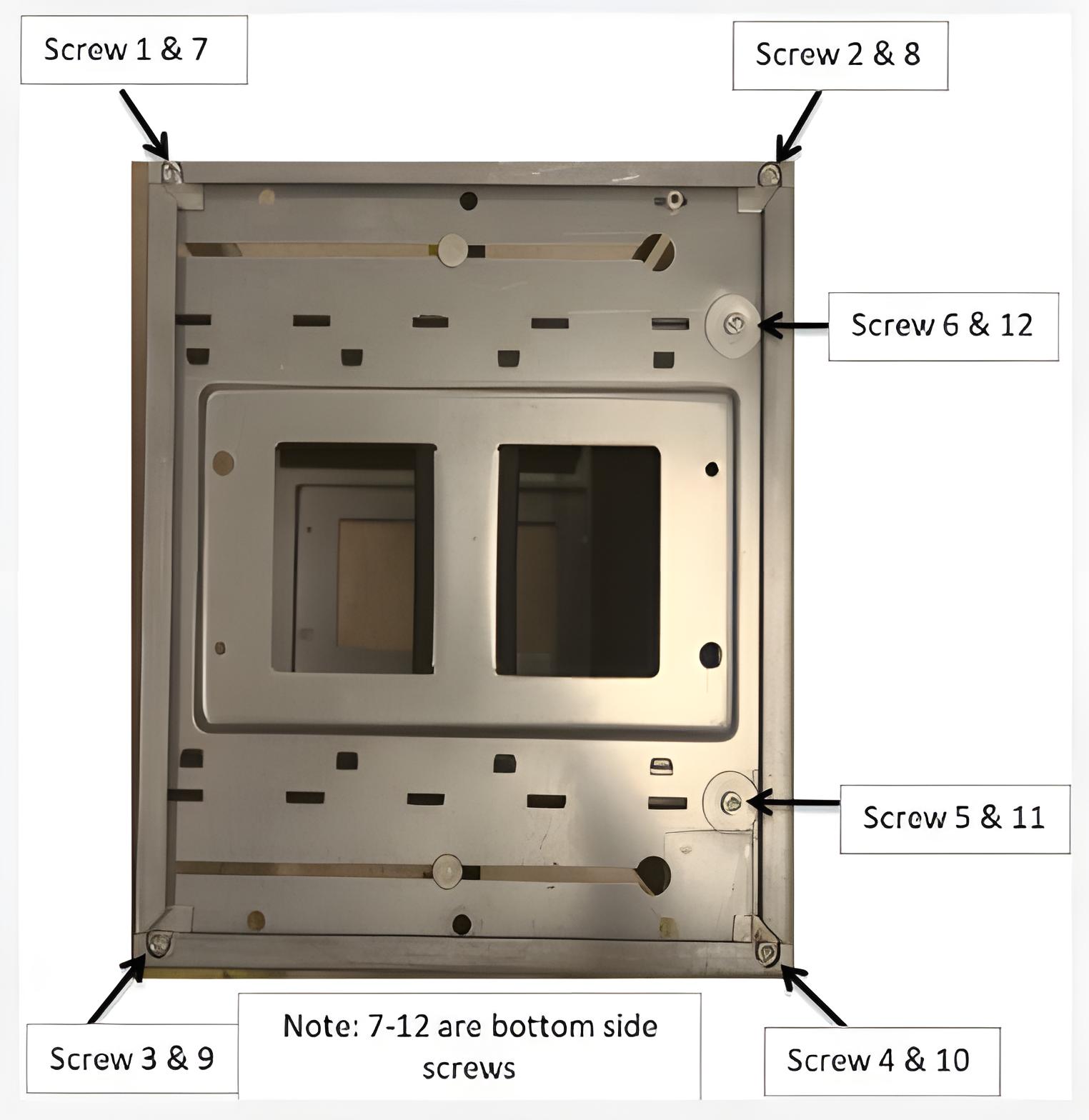

Are Screws #1-12 Present and Tight?
OK
NG
3

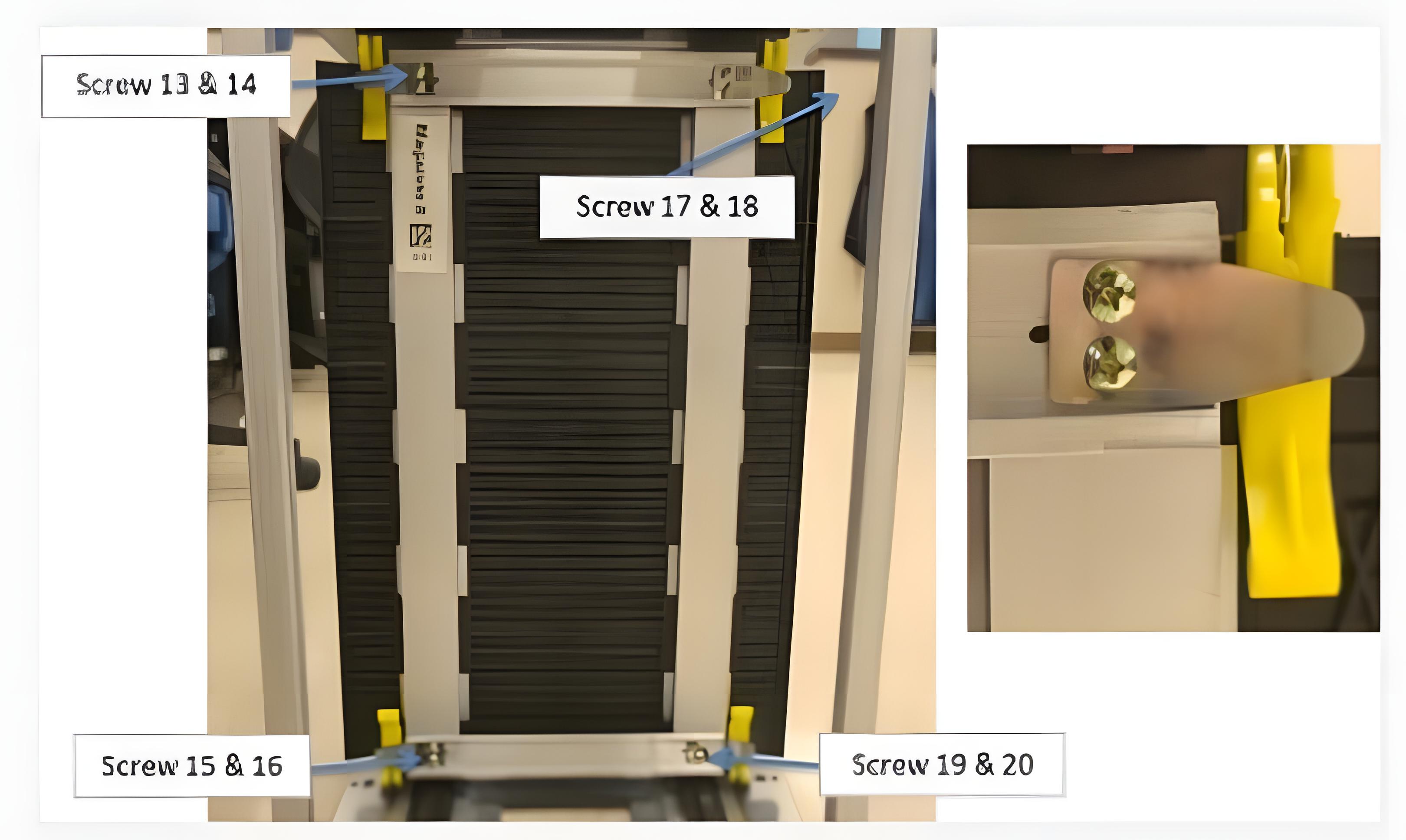

Are Screws #13-20 Present?
OK
NG
4

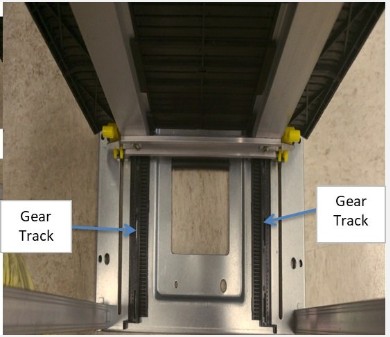

Is the Gear Track OK and Working?
OK
NG
No Gear on this Magazine Type
5

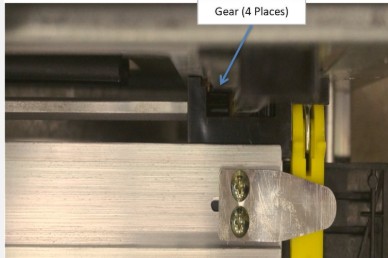

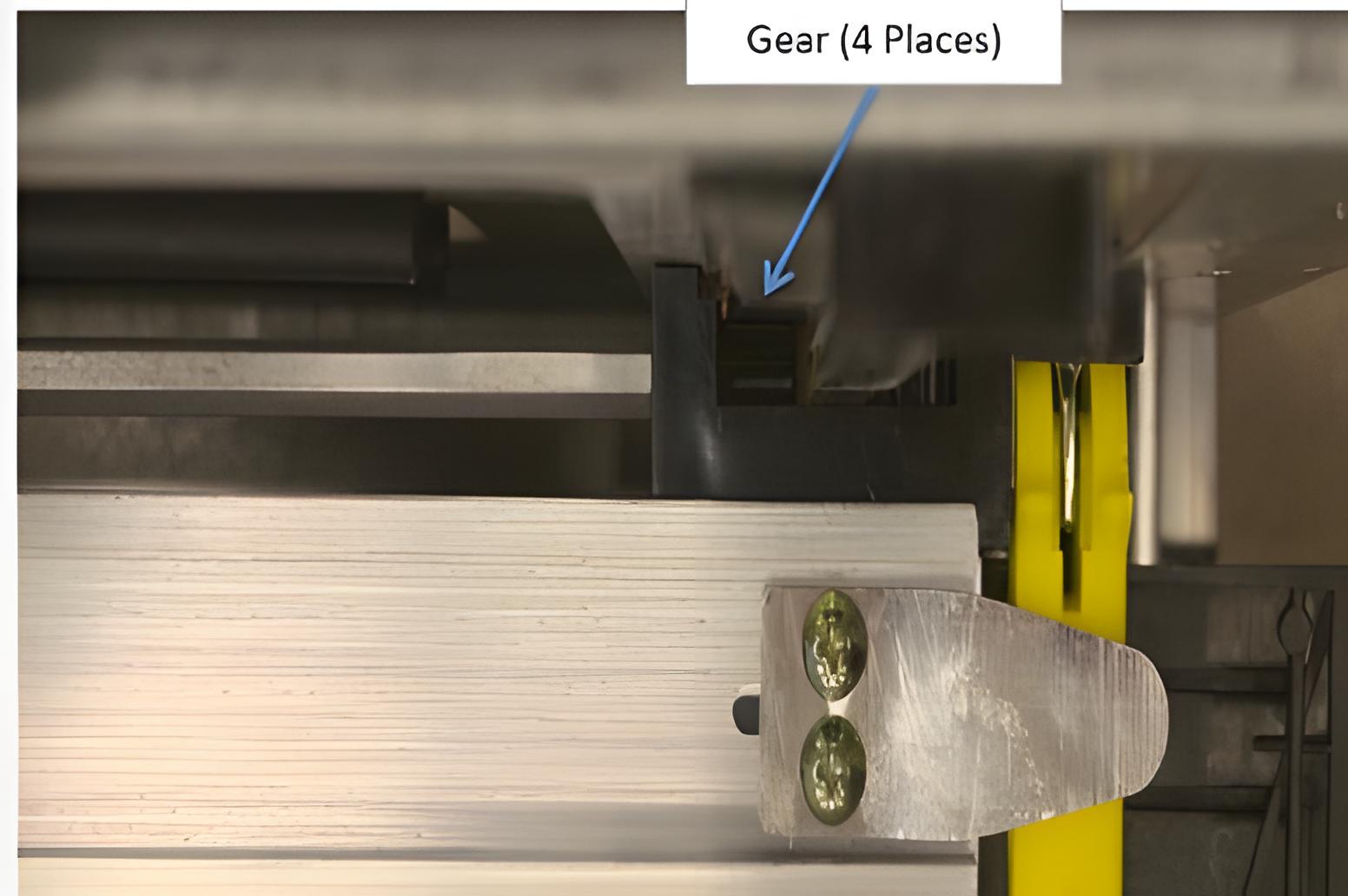

Is the Gear OK and Working?
OK
NG
No Gear on this Magazine Type
6

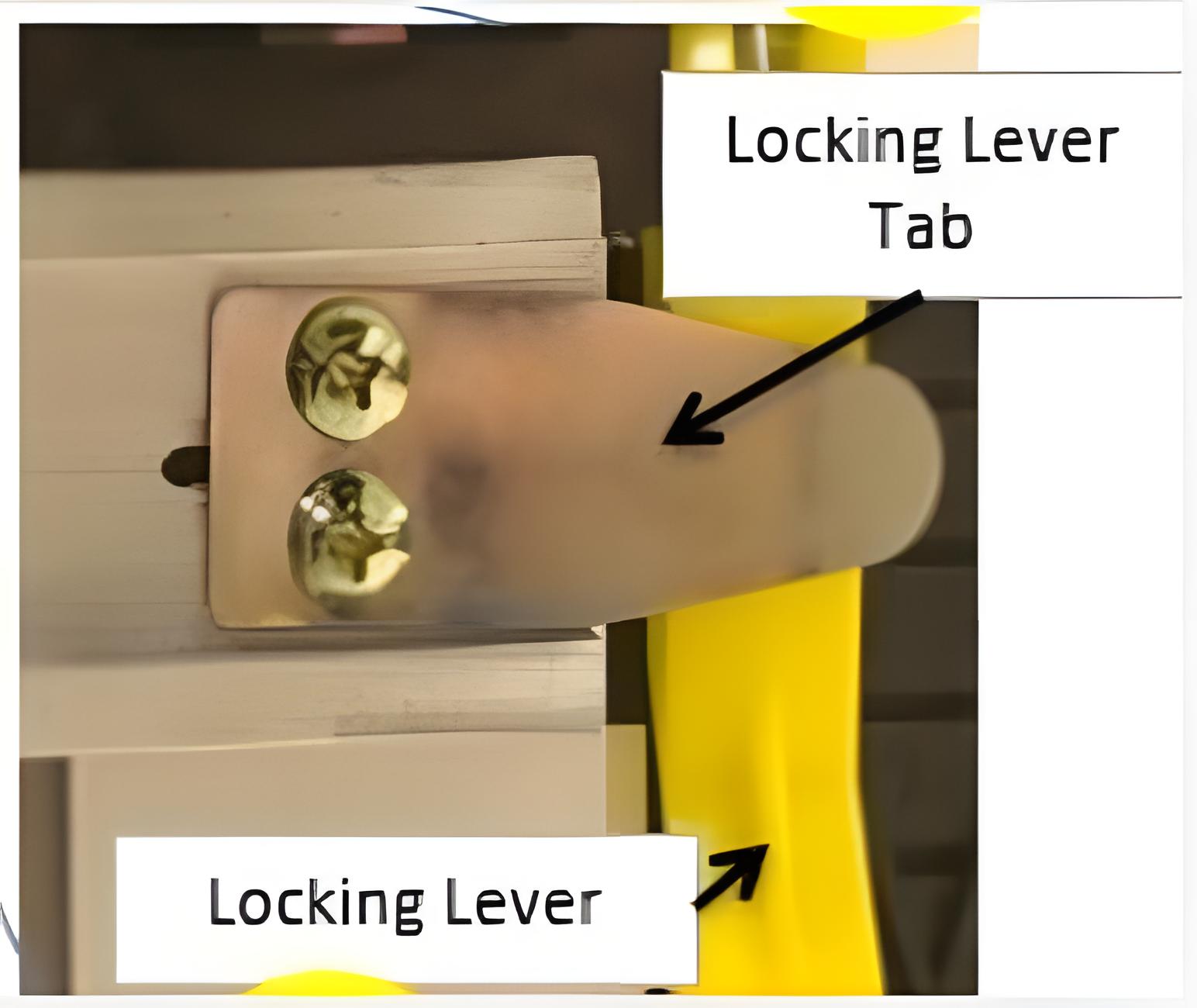

Are the Locking Levers OK and Working?
OK
NG
No Locking Levers on this Magazine Type
7
Are the Locking Lever Tabs Locked and OK?
OK
NG
No Locking Lever Tabs on this Magazine Type
8
Are the Rails OK and Working?
OK
NG
9
Is the Rail Width Correct and OK Board Transfer?
OK
NG
10

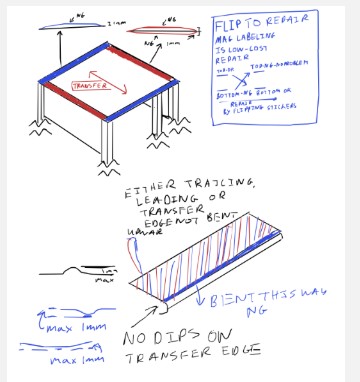

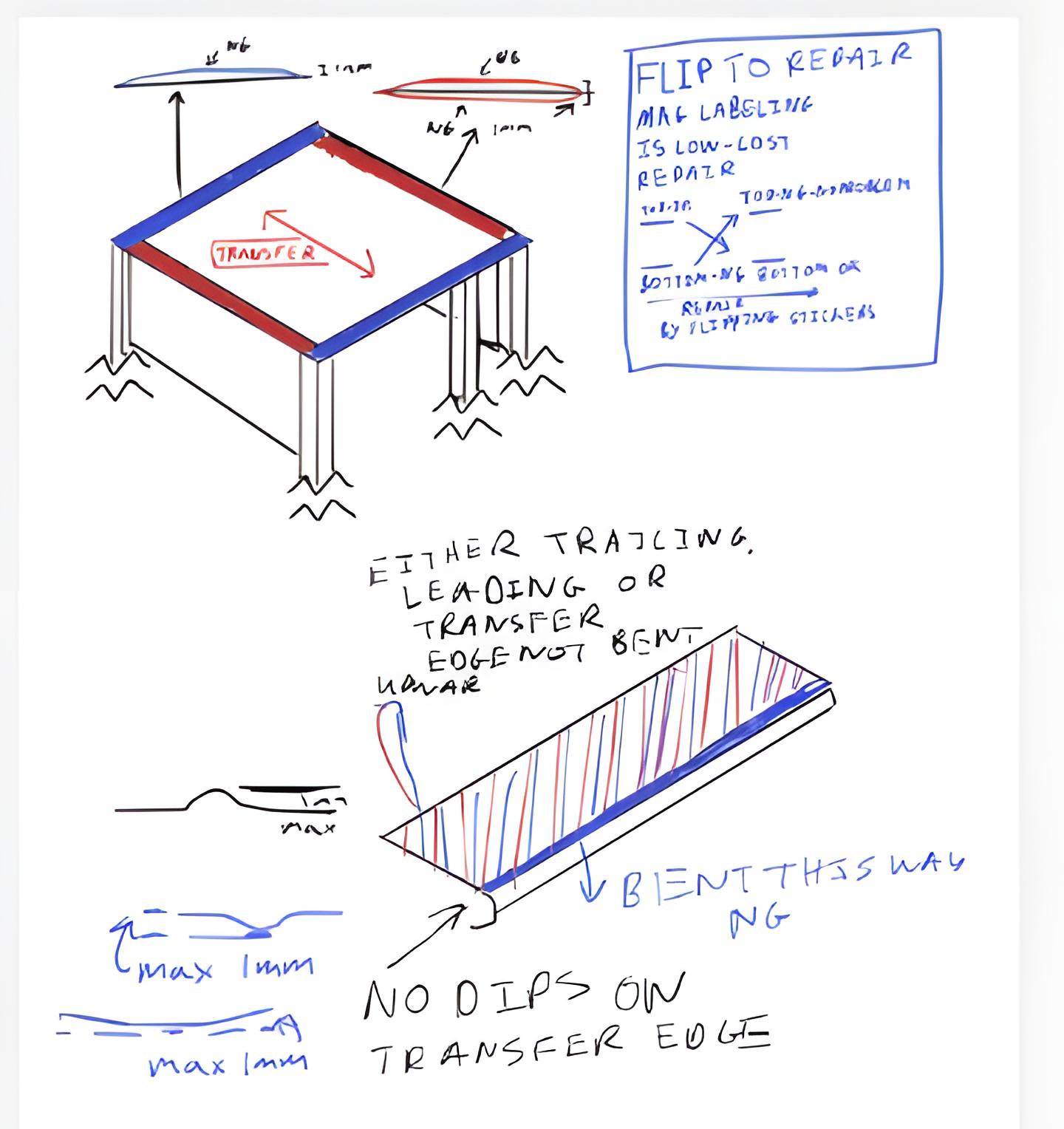

Is the Magazine Square and not Damaged/Cracked?
OK
NG
11
Initials (at least 2 characters)
12
Time Spent Inspecting (minutes)
13
Attach Images (optional) Name should be Fixture #
